Overview
Specifications
| Model | BCL | ||
| Rated Capacity (kgf) | 6,10,15,20,30,35,50,60,100,150,200 | ||
| Accuracy Class | D3 | C3 | |
| Combined Error (% R.O) | ≤0.03 | ≤0.025 | |
| Creep for 30 min. (% R.O) | ≤0.03 | ≤0.017 | |
| Excitation | Recommended (V) | 10 | |
| Maximum (V) | 15 | ||
| Compensated Temerature Range(˚C) | -10~+40 | ||
| Operating Temperature Range(˚C) | -20~+70 | ||
| Material & Plate | Anodized Aluminum | ||

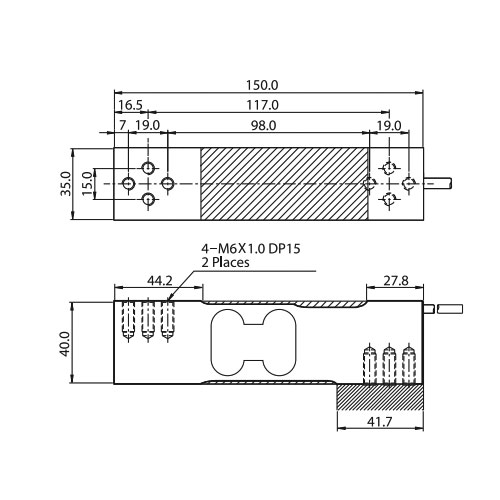

Product dimensions
